Air Line Valves

Janatics Flow Control Valves - Inline Type

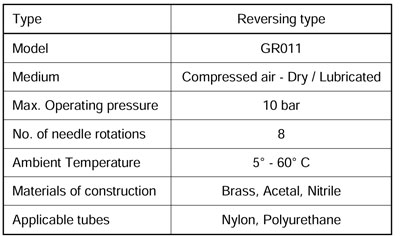

Description :

• Fine regulation of air flow
• Elegant design and finish
• Available sizes : ∅4, 6, 8, 10 & 12mm

Functions & Applications :

• Function - These valves allow controlled flow of air in one direction and free flow in the other direction.
• Application - These valves are used to control the speed of the pneumatic cylinder

Technical Specifications :

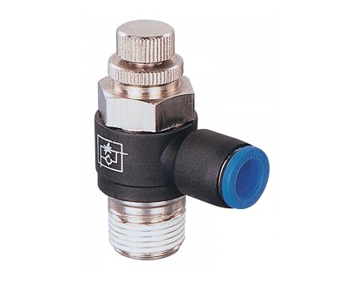

Janatics Flow Control Valves

Description :

• Directly mountable on cylinder/valve ports
• Can be rotated by 360 degree
• Fine regulation of air flow
• Nickel plated body
• Male threads(R) teflon coated
• Elegant design and finish

Functions & Applications :

• Function - These valves allow controlled flow of air in one direction and free flow in the other direction
• These are available in two versions
  a) Supply control version
  b) Exhaust control version.
• Application - These valves are used to control the speed of piston in a pneumatic cylinder

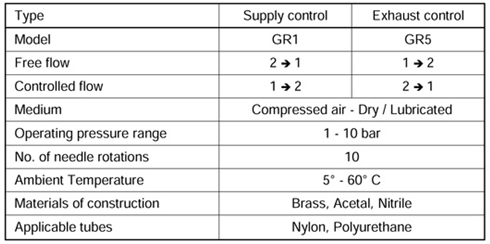

Technical Specifications :

Janatics Flow Control Valves - Metal

Description :

• Directly mountable on cylinder / valve ports
• Fine regulation of air flow
• Male threads (G) with sealing washer
• Elegant design and finish
• Slotted head screw adjusting type

Functions & Applications :

• Function - These valves allow controlled flow of air in one direction and free flow in the other direction.
• These are available in two versions
  a) Supply control version
  b) Exhaust control version.

Applications :
These valves are used to control the speed of piston in a pneumatic cylinder.

Technical Specifications :

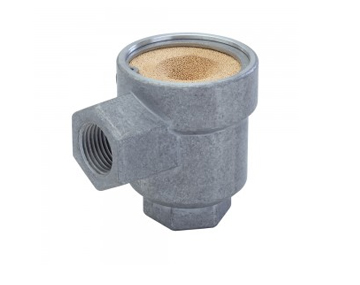

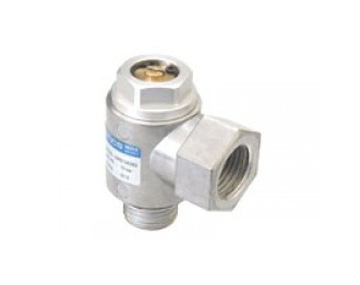

Janatics Quick Exhaust Valves

Description :

• Increase the speed of the cylinder
• With / without silencer
• Connection - M5, G1/8, G1/4, G3/8, G1/2
• Type GQ01 series is with silencer to reduce the exhaust noise

Functions :
These Quick exhaust valves when fitted to cylinder ports will result in increased speed of the cylinder. The exhaust air is directly connected to atmosphere through a bigger hole, instead of exhaust air going through the directional valve

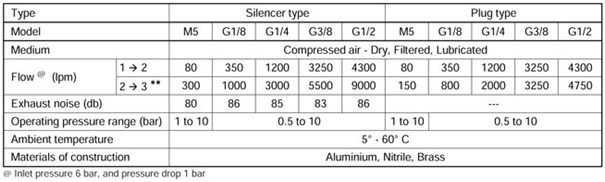

Technical Specifications :

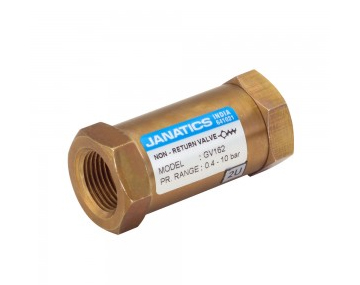

Janatics NRV - Non Return Valves

Description :

• In line mounting
• Low cracking and closing pressure
• Bubble tight elastomer sea

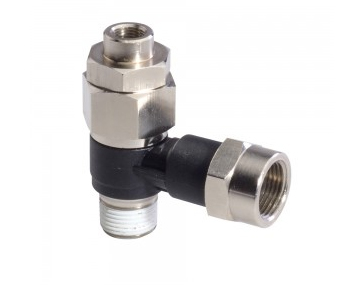

Janatics Pilot Operated NRV - Pilot Operated Non Return Valves

Description :

• Available in two versions
• Low cracking and closing pressure
• Bubble tight - elastomer seat
• Plastic portion can be turned by 360°
• Teflon pre-coated male taper threads

Functions :
Pilot operated non-return valve is used for stopping the cylinder in intermediate position. So long as a pilot signal is applied, air is free to flow to and from the cylinder. When the pilot signal is removed, the valve acts as a conventional non-return valve and prevents air from exhausting from the cylinder, thus stopping movement.

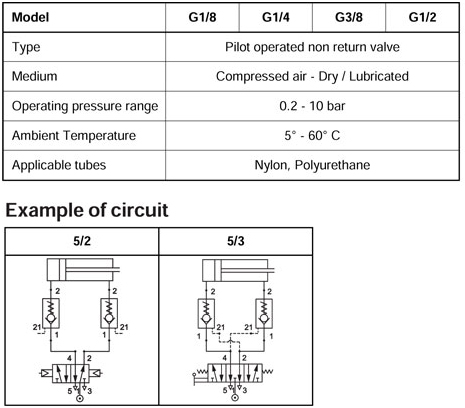

Technical Specifications :

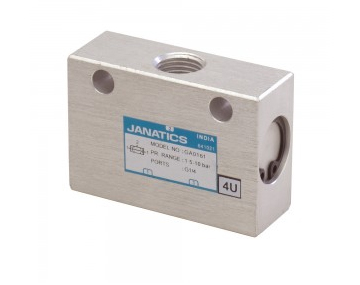

Janatics AND Valves

Description :

• AND valve delivers air at the outlet (A) only when air signal is present at both inputs (X and Y)
• If two signals of different pressure is applied, the lower pressure is connected to outlet (A).

Applications :
An AND valve (or dual pressure valve) is used in cases where at least 2 signals are required to be present before a function is executed. It can be used in safety circuits and logic controls

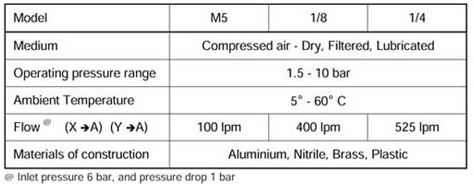

Technical Specifications :

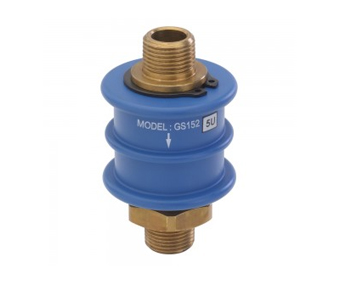

Janatics Inline Slide Valves

Description :

• Inline mounted
• Sleeve type, saves space
• Smooth, easy operation

Applications :

• These valves can be used at the inlet of pneumatic tools like screwdriver, grinder etc., pneumatic systems and near machineries using pneumatic systems, for quick and convenient connecting - disconnecting of compressed air
• Operation - Moving the sleeve towards " OUT ", connects the air line to the system and moving the sleeve in the opposite direction, will close the inlet port and exhaust the down stream air.

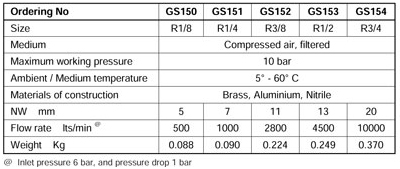

Technical Specifications :
